C Drive Extend Volume Greyed Out in Windows 10/11? Try THIS!

Have you ever tried to extend your C drive in Windows 11, only to find the extend volume option completely grayed out? I recently ran into this exact problem when creating content about installing Windows without a USB drive. Even though I had unallocated space sitting right there, I couldn’t use it to expand my system drive. The culprit? A recovery partition blocking the way.

After diving deep into this issue, I discovered a solution that works even when traditional disk management tools fail. However, I must warn you upfront – this process is extremely delicate and requires careful attention to detail. One wrong step could break your Windows installation entirely.

Key Takeaways

• Recovery partitions block extend volume functionality – Windows can’t extend drives when system partitions sit between your C drive and unallocated space
• Diskpart command-line tool provides advanced partition management – The built-in disk management GUI has limitations that diskpart can overcome
• Backup recovery partition details before deletion – You’ll need the original partition ID and attributes to properly recreate the recovery environment

Requirements

Before attempting this fix for extend volume greyed out issues, ensure you have:

• Administrator access to your Windows 11 system
• At least 1GB of unallocated space on your drive
• A backup of important data (recommended)
• Notepad or text editor to save partition details
• Basic familiarity with command prompt operations

Why Does Extend Volume Get Greyed Out?

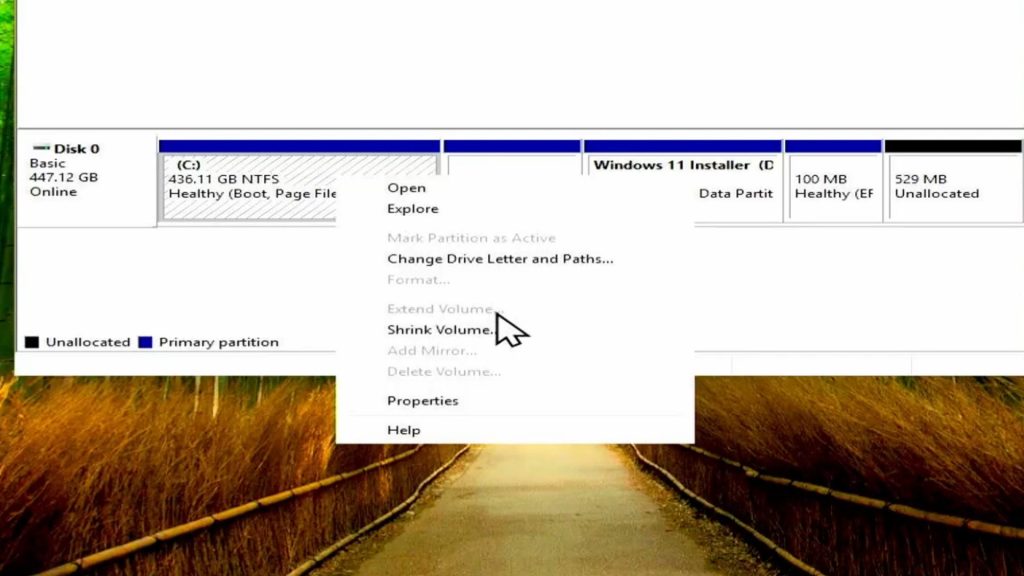

When you see the extend volume option greyed out in disk management, it’s typically because Windows can’t extend a partition when other system partitions block the path to unallocated space. In my case, both recovery and boot partitions were sitting between my C drive and the free space I wanted to use.

This partition structure prevents the simple right-click extend volume method from working, forcing us to use more advanced techniques.

Understanding Your Partition Structure

Before we dive into the fix, you need to understand what we’re working with. Open Disk Management by right-clicking the Start button and selecting “Disk Management.”

You’ll typically see:

• Your C drive (main Windows partition)
• Recovery partition (usually 500MB-1GB)
• Boot partition (typically 100MB)
• Unallocated space you want to reclaim

The key issue is that system partitions create barriers that prevent simple volume extension.

Step-by-Step Solution: Extend Volume When Greyed Out

Step 1: Remove Optional Installation Partitions

If you followed my Windows installation without USB guide, you might have a Windows installer partition taking up extra space.

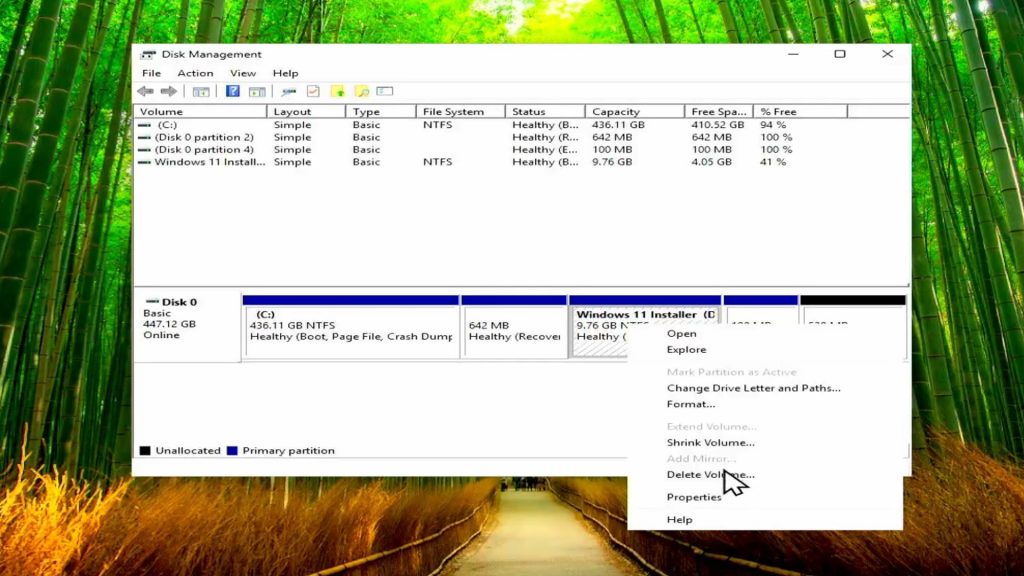

Right-click on any Windows installer partition and select “Delete Volume.” Click “Yes” to confirm and reclaim this space as unallocated storage.

Step 2: Disable Recovery Environment

Open Command Prompt as administrator by searching for “CMD” and selecting “Run as administrator.”

First, we need to disable the recovery environment before making changes:

reagentc /disable

You should see “Operation completed successfully” confirming the recovery environment is disabled.

Step 3: Launch Diskpart for Advanced Partition Management

Enter the diskpart utility by typing:

diskpart

This launches Windows’ built-in partition management tool with advanced capabilities beyond the GUI.

Step 4: Select Your Target Disk

List all available disks:

list disk

Select your system disk (usually Disk 0):

sel disk 0

If you have multiple drives, make sure you select the correct one containing your Windows installation.

Step 5: Identify and Document Recovery Partition

List all partitions on the selected disk:

list part

Identify your recovery partition (usually the smaller partition between your C drive and unallocated space). Select it:

sel part 2

Replace “2” with the actual partition number of your recovery partition.

Get detailed information about this partition:

detail partition

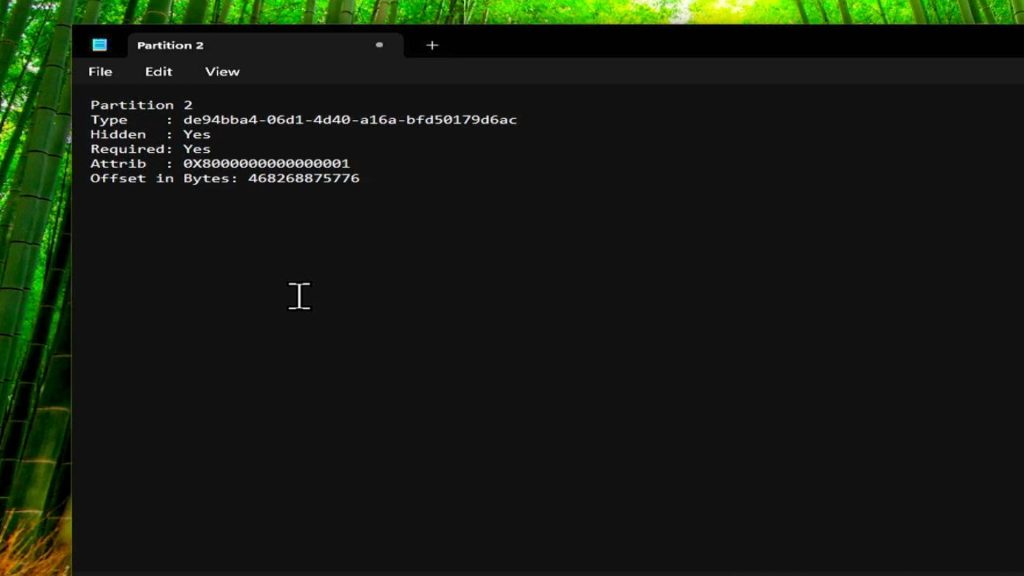

Critical Step: Copy all the partition details to Notepad. You’ll need the Type ID and Attributes values to recreate this partition later.

Step 6: Delete the Recovery Partition

With the recovery partition still selected, delete it:

del part override

The “override” parameter forces deletion of system partitions. You’ll see “DiskPart successfully deleted the selected partition.”

Step 7: Extend Your C Drive

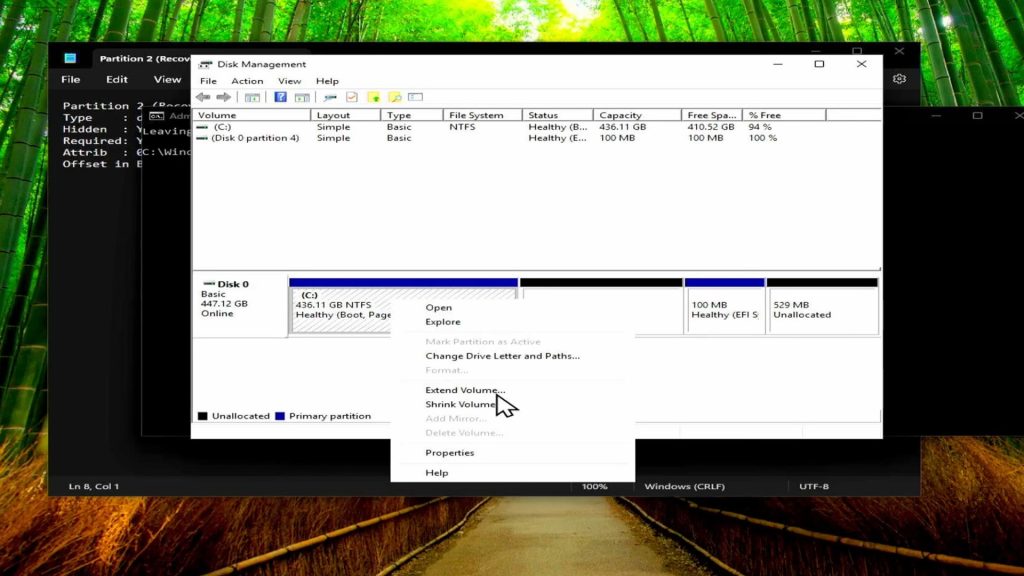

Return to Disk Management (you might need to refresh the view). Now you should see the extend volume option available when you right-click your C drive.

Right-click your C drive and select “Extend Volume.” Follow the wizard:

1. Click “Next”
2. Use all available space (or specify a custom amount)
3. Click “Next” again
4. Click “Finish”

Your C drive should now be larger, incorporating the previously inaccessible space.

Step 8: Recreate Recovery Partition

Right-click your extended C drive and select “Shrink Volume.” Enter 1000 MB (1 GB) as the shrink amount and click “Shrink.”

Right-click the new unallocated space and create a new simple volume:

1. Select “New Simple Volume”
2. Click “Next” through the wizard
3. Accept all default settings
4. Complete the volume creation

Step 9: Configure New Recovery Partition

Return to the command prompt with diskpart running. If you exited, restart diskpart:

diskpart
list disk
sel disk 0
list part

Select your newly created 1GB partition:

sel part 2

Replace “2” with the actual partition number.

Apply the saved partition ID from your notes:

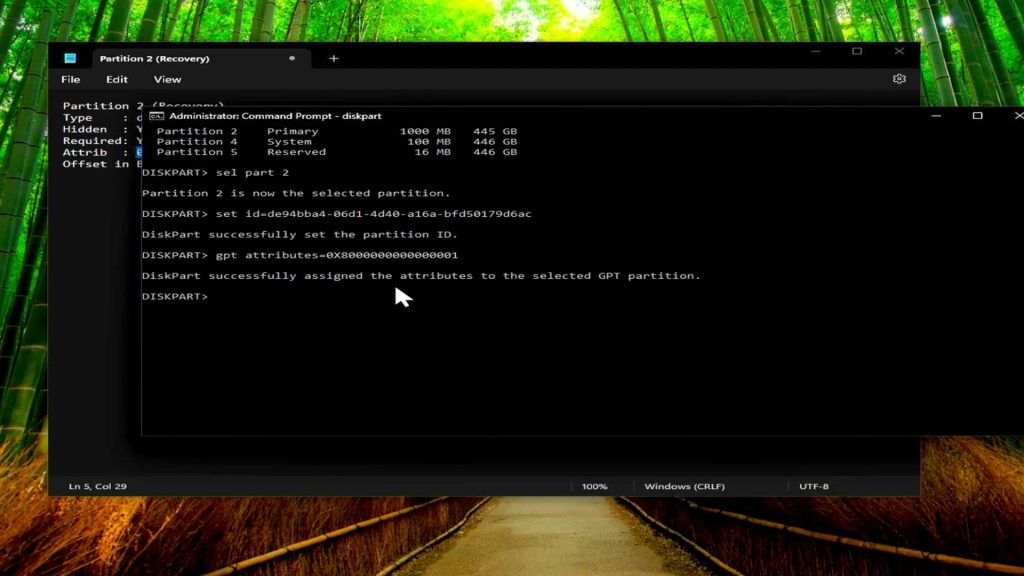

set id=<TYPE_ID_FROM_NOTES>

Apply the saved attributes:

gpt attributes=<ATTRIBUTES_FROM_NOTES>

Step 10: Remove Drive Letter from Recovery Partition

The new recovery partition will appear in File Explorer with a drive letter, which we need to remove.

In diskpart, list volumes:

list vol

Find your recovery partition (labeled as “New Volume”) and note its volume number. Select it:

sel vol 1

Replace “1” with the actual volume number.

Remove the drive letter:

remove letter D

Replace “D” with the actual drive letter assigned.

Step 11: Re-enable Recovery Environment

Exit diskpart:

exit

Re-enable the Windows recovery environment:

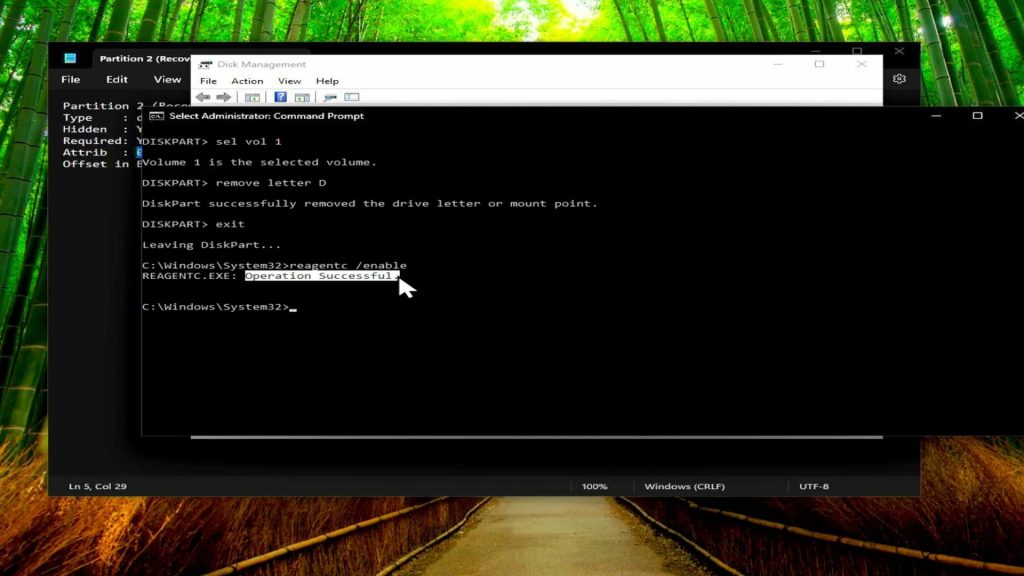

reagentc /enable

You should see “Operation completed successfully,” confirming your recovery environment is properly configured.

Important Limitations and Considerations

While this method successfully extends your C drive when the extend volume option is greyed out, there are some limitations:

Note: Some unallocated space may remain inaccessible using only Windows built-in tools. In my case, about 529 MB remained unallocated due to the boot partition’s position. Third-party partition managers might handle this more efficiently.

The boot partition typically cannot be moved or deleted safely using diskpart, which may leave small amounts of unallocated space unreachable.

Troubleshooting Common Issues

Extend Volume Still Greyed Out

If the extend volume option remains unavailable after removing the recovery partition, check for:

• Hidden system partitions
• Boot partitions blocking access
• File system compatibility issues (NTFS vs. FAT32)

Recovery Environment Won’t Enable

If reagentc /enable fails:

• Verify the recovery partition has the correct Type ID
• Check that GPT attributes are properly set
• Ensure the partition is at least 500 MB in size

Drive Letter Keeps Reappearing

If the recovery partition drive letter returns after removal:

• Use diskpart to remove the letter again
• Check for automatic drive letter assignment policies
• Consider using Group Policy to prevent automatic assignment

Alternative Solutions for Extend Volume Issues

If this method seems too complex or risky for your situation, consider these alternatives:

Third-Party Partition Managers

Tools like EaseUS Partition Master or AOMEI Partition Assistant can often handle partition moving and resizing more safely than manual diskpart operations.

Clean Windows Installation

Sometimes starting fresh with a clean Windows 11 installation and proper partition planning is more reliable than complex partition manipulations.

Cloud Storage Solutions

Instead of expanding local storage, consider moving files to cloud storage services to free up space without risky partition operations.

Conclusion

Successfully extending your C drive when the extend volume option is greyed out requires careful manipulation of system partitions using diskpart. While this method can reclaim significant disk space, it’s not without risks.

The key to success lies in properly documenting your recovery partition details before deletion and following each step precisely. Remember, one mistake could require a complete Windows reinstallation, so proceed only if you’re comfortable with command-line operations and have adequate backups.

This solution worked perfectly for my setup, allowing me to reclaim 10 GB of space that was previously inaccessible. However, your mileage may vary depending on your specific partition layout and system configuration.

---

Frequently Asked Questions (FAQ)

Can I extend my C drive without deleting the recovery partition?

Unfortunately, when system partitions block access to unallocated space, you must temporarily remove them to enable volume extension. The recovery partition can be safely recreated afterward using the method outlined above.

What happens if I mess up the recovery partition recreation?

If you incorrectly recreate the recovery partition, Windows recovery features may not work properly. However, your system should still boot normally. You can attempt the process again or perform a system restore to return to your previous state.

Why doesn’t Windows allow moving partitions like Linux?

Windows disk management has limited partition manipulation capabilities compared to Linux tools. This conservative approach prioritizes system stability but creates situations where manual intervention is required for complex partition operations.

Is it safe to delete the boot partition to gain more space?

No, never delete the boot partition. This system partition contains essential boot files, and removing it will prevent Windows from starting. Focus only on the recovery partition for this procedure.

Can this method work on Windows 10?

Yes, this diskpart-based approach works on both Windows 10 and Windows 11 systems. The commands and partition management principles are identical across both operating systems.
